600BPH Automatic Gallon Mineral Water Barrel Bottling Filling Line

600BPH Automatic 5 Gallon Mineral Water Barrel Bottling Filling Line Machine Equipment

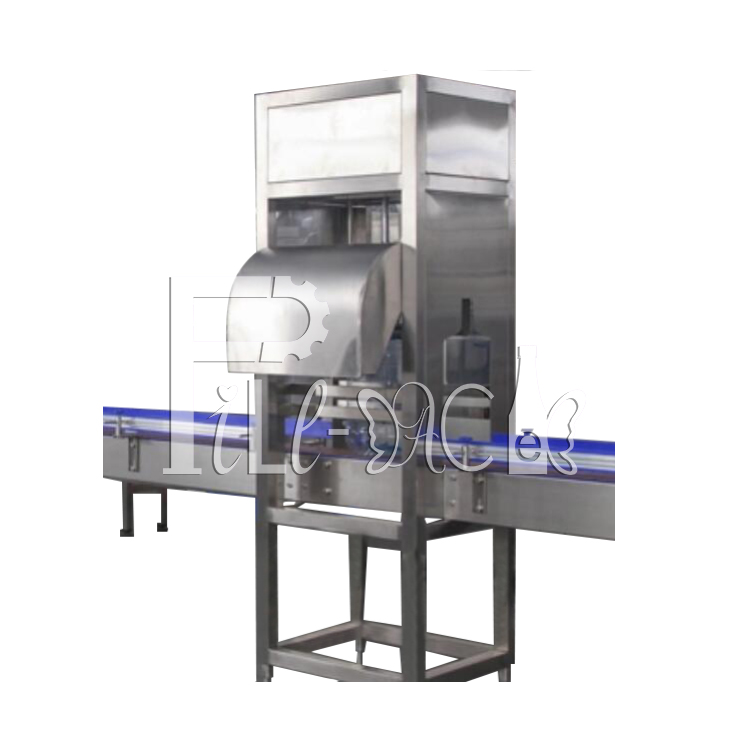

1.1, Automatic De-capper

This machine is driven by cylinder, controlled by PLC; Automatic working by barrel checking; The machine has two de-capping heads. De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.When the gallon bottle comes into the machine, the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client’s own holder;The claw pressure is adjusted to protect caps;

De-capping head: 2 heads

Dimension: 900*600*2000mm

Weight: 130kg

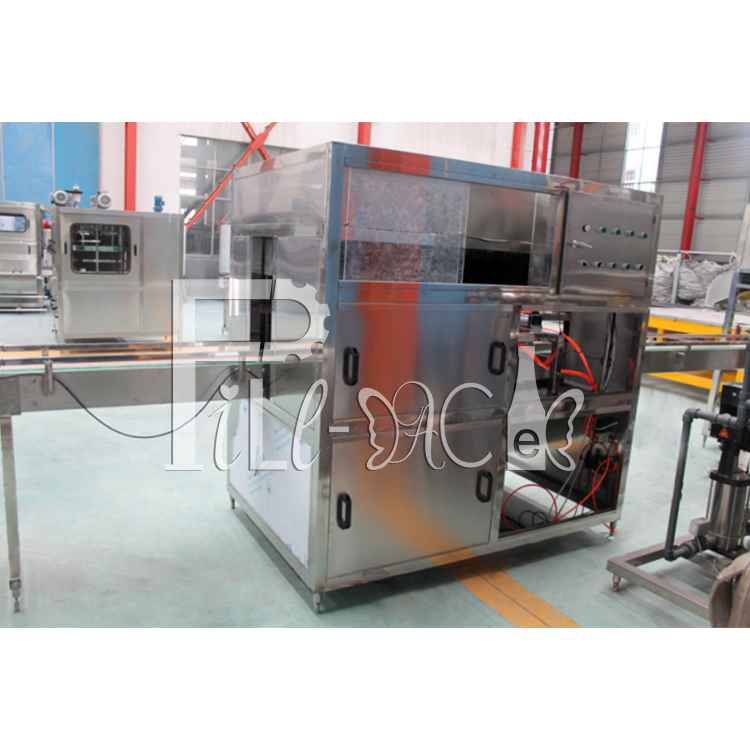

1.2, Linear type gallon bottle external washer

The machine is completely blocked to stop water leakage, when the gallon bottles are sent to washing position, the cylinder will stop 4 bottles inside and fixed them by brushes and fixing bar, the water will be pumped and jetted to bottle body, bottle rotates together with brushes; The bottles will be cleaned by brushes and water function;No air compressor needed, it is easy for production and maintenance;

Parameters:

Brush qty: 5pcs*2

Dimension: 1500*1100*1750mm

Weight: 350KG

Power: 0.55KW

Recycle water tank size: 600*550*550mm

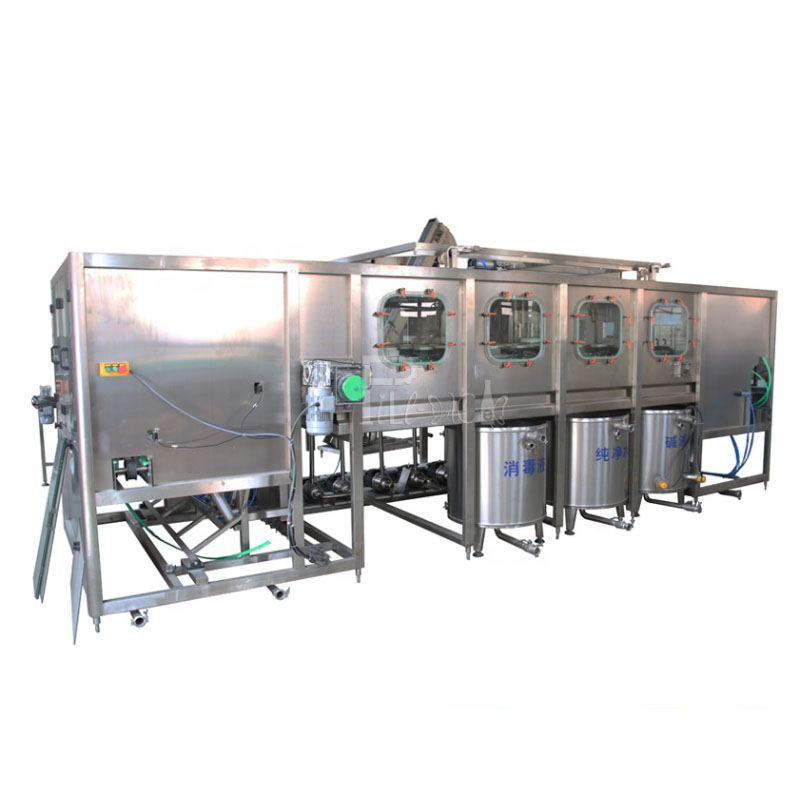

1.3, Washer/Filler/Capper with auto bottle loading

Barrel filling unit can be divided into 3 steps: washing, filling and capping, total 18 working stations

1, 1 electric heating station

2, 2 disinfectant washing stations

3, 1 dripping station

4, 2 return water stations

5, 2 pure water stations

6, 1 dripping station

One side 9 stations, Both sides 18 stations
